How I Designed and Built a Hog Wire Fence Inspired by Modern Farmhouse Style
From Pinterest Board to Property Line: Designing a Hog Wire Fence With Modern Farmhouse Style
You've scrolled through Pinterest, saved a dozen posts, and thought: "I want that." The clean lines of a hog wire fence framed in wood or metal, blending rustic warmth with industrial edge. Maybe you were inspired by a modern farmhouse build, a winery trellis, a mountain cabin deck railing, or that one neighbor whose yard looks like it belongs in Architectural Digest. Whatever sparked it, you're ready to move from inspiration to reality.
TL;DR
- The best hog wire fence designs draw from modern farmhouse, industrial-modern, Pacific Northwest, and wine country aesthetics, all achievable with the right panel and frame pairing.
- Wire gauge and galvanizing method are the number-one durability factors. 6-gauge wire electrogalvanized AFTER welding outlasts pre-galvanized 11-gauge or 14-gauge panels by 3 to 5 times.
- Total installed cost ranges from $28 to $65 per linear foot depending on frame material (wood vs. metal) and terrain.
- BarrierBoss panels carry a 40-year warranty and use dip-coated 6-gauge wire, compared to the 15-year warranties typical of competitor panels.
- Design your frame first, then size your panels. Not the other way around.
- BarrierDirect delivers to your curb with our own trucks and crew. No third-party LTL headaches, no curb-drop-and-leave.
The 5 Design Styles Inspiring Hog Wire Fences
Not all hog wire fences look the same, and that's the point. The panel is the canvas; the frame and context define the style. Here are the five looks driving the most builds right now:
1. Modern Farmhouse

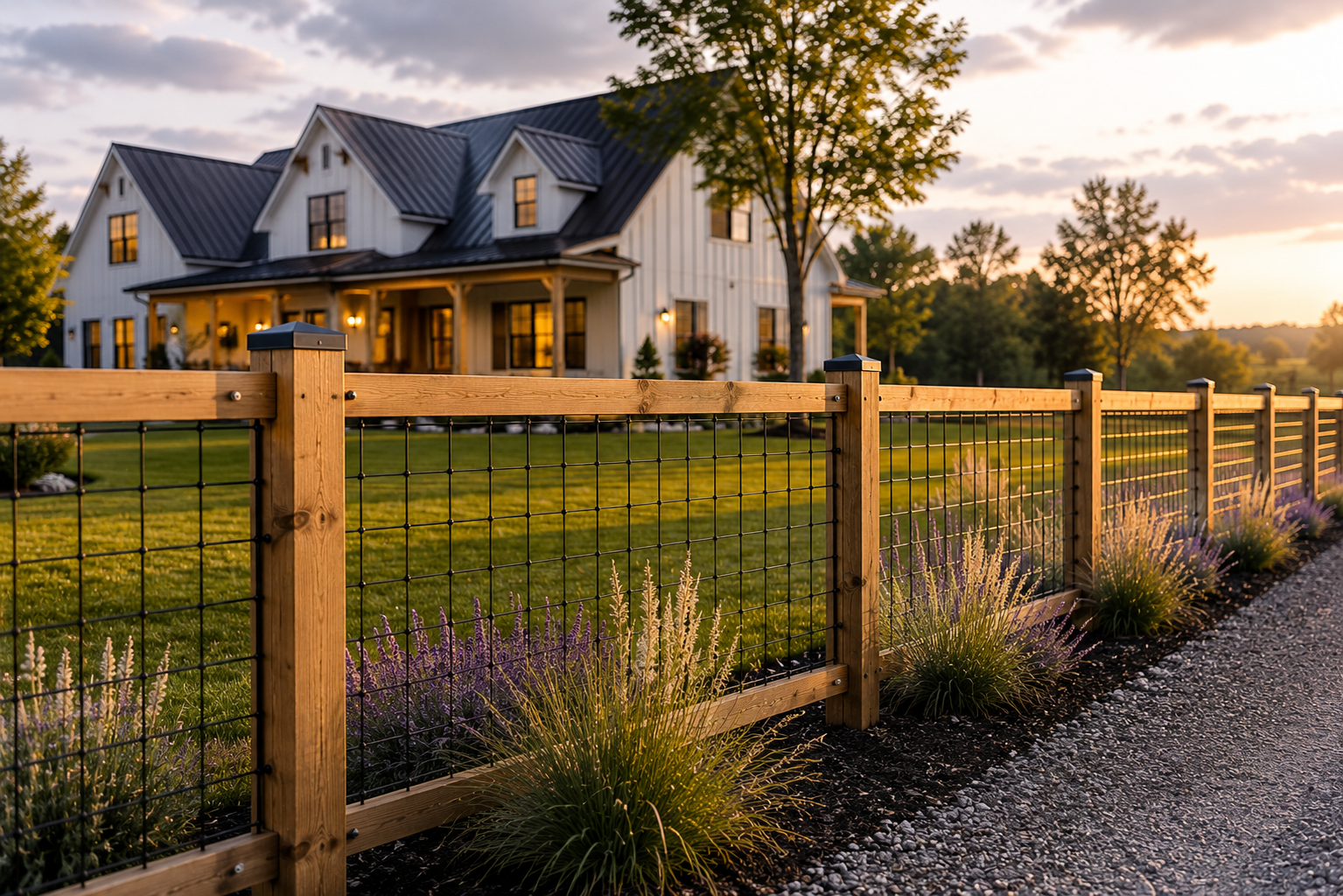

Think white-painted or natural cedar 4x4 posts, horizontal top and bottom rails, and hog wire infill. Clean, warm, and approachable. This is the most popular residential style by a wide margin and works for property lines, garden enclosures, and front yard fences where you want visibility without giving up structure.
2. Industrial-Modern
Steel tube or angle-iron frames paired with heavy-gauge hog wire. Often dip-coated black. You'll see this on urban patios, rooftop decks, and commercial storefronts. The key is keeping the frame slim so the wire pattern stays the visual star.
3. Wine Country / Agrarian
Rustic posts (sometimes round or rough-hewn), stretched hog wire, minimal fuss. Inspired by vineyard fencing and ranch infrastructure. The beauty is in the imperfection and the landscape behind it. Works brilliantly on sloped lots.
4. Pacific Northwest Cabin
Dark-stained timber frames with hog wire infill. Moody, textured, and built to handle serious weather. Charcoal or espresso stain on cedar posts against black dip-coated wire creates depth that lighter framing can't match, and the open grid keeps forest views intact.
5. Deck Railing / Balustrade
Hog wire as railing infill between wood or metal posts on decks, porches, and elevated patios. This style preserves sightlines while meeting code. The wire needs to be rigid enough to not deflect under lateral pressure, which is where gauge really matters.
Design Planning: From Mood Board to Blueprint
Step 1: Define Your Purpose
A property boundary fence, a garden enclosure, and a deck railing have different height requirements, post spacing needs, and code implications. Start here. A standard property fence runs 4 to 6 feet tall; deck railings typically require 36 inches (residential) or 42 inches (commercial) per IRC/IBC codes.
Step 2: Choose Your Frame Material
- Western Red Cedar: Naturally rot-resistant, warm tone, easy to work with. Typical lifespan: 15 to 20 years untreated, 25-plus years with regular sealing.
- Pressure-Treated Pine: Budget-friendly, green-tinted when new, grays over time. 15 to 20 year lifespan.
- Steel Tube/Channel: Longest lasting frame option (30-plus years with proper coating). Heavier, requires welding or bolted connections.
- Composite: Low maintenance, but harder to attach wire panels to. Not ideal unless you're pre-drilling for clips.
Step 3: Size Panels to Frame, Not the Reverse
This is the mistake most DIYers make. They buy panels first, then try to build a frame around them. Design your frame dimensions first, confirm your post spacing (6 to 8 feet is standard for hog wire), then order panels that fit within those bays. BarrierBoss panels are sized for standard residential and commercial spacing, so you're not stuck cutting and weakening wire in the field.
Materials That Make or Break Your Fence
Let's be honest: the difference between a hog wire fence that looks great at year 10 and one that's a rust-streaked eyesore at year 3 comes down to two specs most people never check.
Wire Gauge
Lower number means thicker, stronger wire. Unlike thin 14-gauge or 11-gauge wire that dents under load and deforms from pet pressure, ladder leans, or a solid windstorm, 6-gauge wire holds its shape for decades. BarrierBoss uses 6-gauge dip-coated wire as standard across the hog wire panel line. That's not a premium upgrade; it's the baseline.
Galvanizing Method (This Is the Big One)
BarrierBoss panels are electrogalvanized AFTER welding, then dip-coated. Why does the sequence matter? Because welding generates extreme heat. On pre-galvanized wire, the kind used in most competitor panels, that heat burns the zinc coating off at every single weld intersection. A standard 4x8 hog wire panel has hundreds of weld points. That means hundreds of bare-steel spots where corrosion starts first.
Electrogalvanizing after welding means the welds get the same heavy zinc protection as every other inch of wire. No weak points. No premature rust blooms at the grid intersections. It's the difference between a panel that holds up for 40 years (which is exactly how long we warrant it) and one that starts showing orange at the joints within 5 to 7 years.
Wire Spec Comparison: What to Buy, What to Avoid
| Spec | BarrierBoss Panels | Typical Big-Box / Farm Store Panels |
|---|---|---|
| Wire Gauge | 6-gauge (thick, rigid) | 6-gauge to 14-gauge (often thin, flexible) |
| Galvanizing | Electrogalvanized AFTER welding | Pre-galvanized wire (zinc burned off at welds) |
| Finish | Dip-coated | Bare galvanized or thin coating |
| Warranty | 40 years | 15 years (typical best case) |
| Weld Point Protection | Full zinc coverage at every weld | Burned or thin zinc at weld intersections |
| Pricing Model | Factory-direct (no distributor markup) | Retail markup through distribution chain |
| Delivery | BarrierDirect: own trucks, crew unloads at curb | LTL curb drop or in-store pickup (you handle it) |
Step-by-Step Build Process
Here's the condensed build sequence for a wood-framed hog wire fence, the most common DIY approach:
- Mark and dig post holes. 6 to 8 ft on center, 24 to 36 inches deep depending on frost line. Use a post-hole digger or rent an auger.
- Set posts in concrete. Plumb each post, brace it, and let the concrete cure 24 to 48 hours. Use 4x4 minimum for fences up to 4 ft, 6x6 for anything taller.
- Install top and bottom rails. 2x4 or 2x6 cedar or treated lumber, face-mounted or notched into the posts. Leave a channel or flat face where the wire will sit.
- Attach hog wire panels. Staple gun with 1.5-inch galvanized staples for wood frames, or use U-bolts or panel clips for metal frames. Start at one end, pull tension across, and fasten every 6 to 8 inches along the rails.
- Add trim cap (optional). A 1x2 or 1x3 trim strip over the wire edges gives a cleaner finished look and protects against wire-edge snags. This is the detail that separates "nice fence" from "that fence."
- Stain or seal the wood. Do this after the wire is mounted so you can seal around attachment points.
Cost Breakdown
| Component | DIY Cost (per linear ft) | Pro-Installed Cost (per linear ft) |
|---|---|---|
| Hog wire panels (6-gauge, dip-coated) | $8 to $14 | $8 to $14 |
| Cedar posts and rails | $10 to $18 | $10 to $18 |
| Concrete, hardware, fasteners | $3 to $5 | $3 to $5 |
| Labor | $0 (your weekends) | $15 to $28 |
| Total | $21 to $37/ft | $36 to $65/ft |
For a typical 150 linear foot backyard fence, that's roughly $3,150 to $5,550 DIY or $5,400 to $9,750 professionally installed. These numbers assume 4-ft height with cedar framing and 6-gauge dip-coated panels. Metal frames push the upper range higher; pressure-treated pine pulls costs down about 20 percent.
One cost most people forget: delivery damage. Ordering heavy wire panels through third-party LTL freight means terminal transfers, forklift handling by strangers, and a curb drop where the driver isn't required to unload. Bent panels, scratched finish, and freight claims that take weeks to resolve. BarrierDirect eliminates all of that. Our own trucks and crew deliver to your curb and unload the panels themselves. Every order includes complimentary freight insurance. Factory-direct pricing means you're not paying distributor markups on top of everything else.
5 Mistakes That Ruin Hog Wire Fence Projects
- Buying thin-gauge wire to save $2 per panel. Panels made from 11-gauge or 14-gauge wire sag between posts, deform when kids or dogs push against them, and look wavy within the first year. 6-gauge costs more upfront and saves you a rebuild.
- Ignoring galvanizing method. Pre-galvanized wire with burned weld points will show rust at every intersection within 5 to 7 years in humid or coastal climates. Always confirm: electrogalvanized after welding.
- Post spacing too wide. Anything beyond 8 feet creates visible sag, even with heavy-gauge wire. Stick to 6 to 8 ft bays.
- Skipping the bottom rail. Running wire to ground level without a bottom rail invites ground moisture contact and lets pets nose under the fence. A bottom rail 2 to 4 inches off grade keeps things clean.
- Not checking local code. Many municipalities have fence height limits (typically 6 ft for backyard, 4 ft for front yard), setback requirements, and permit needs. A 10-minute call to your local building department saves a forced teardown.
Frequently Asked Questions
Can I Use Hog Wire Fence Panels for a Deck Railing?
Yes, and it's one of the most popular applications right now. The key is using a rigid, heavy-gauge panel that won't flex when someone leans against it. 6-gauge wire in a welded grid is stiff enough to meet the IRC requirement of resisting 200 lbs of lateral force at the top rail when properly framed. Thin 14-gauge panels will bow and may not pass inspection.
How Long Does a Hog Wire Fence Last?
That depends entirely on the wire spec. Pre-galvanized 11-gauge panels from farm stores typically last 10 to 15 years before weld-point corrosion becomes visible. BarrierBoss 6-gauge panels, electrogalvanized after welding with a dip-coated finish, carry a 40-year warranty. The wood frame will likely need replacement before the wire does.
What's the Difference Between Hog Wire and Welded Wire Mesh?
Functionally, not much. "Hog wire" traditionally refers to a welded grid pattern with rectangular openings (often 4x4 or 2x4 inches), originally used for livestock. "Welded wire mesh" is the broader category. In residential fencing, the terms are used interchangeably. What matters isn't the name; it's the gauge, the galvanizing, and the finish.
What Mesh Opening Size Should I Choose?
For deck railings, most building codes require that a 4-inch sphere cannot pass through, so choose a 4x4 inch grid or tighter. For gardens, a 2x4 inch grid keeps rabbits and small pests out. For open property lines and livestock, the standard 4x4 works well and keeps the visual grid clean at typical viewing distances.
Do I Need a Permit to Build a Hog Wire Fence?
In most U.S. jurisdictions, fences under 6 feet do not require a building permit, but many require a zoning permit or at minimum a property survey to confirm setback compliance. HOA neighborhoods often have additional restrictions on materials and styles. Check before you dig.
Your Next Move
You've got the inspiration. You've got the specs. Now you need panels that won't let you down in year 3, year 10, or year 30: 6-gauge dip-coated hog wire, electrogalvanized after welding, backed by a 40-year warranty, and priced factory-direct with no distributor markup. Use the configurator to spec your exact project, or browse the full lineup.
Configure Your Fence → Browse Hog Wire Panels →
Not the DIY type? No judgment. Find a local fence installer who builds with these panels daily · See shipping and delivery details
